The All NewArchery timer
DAT-2010Lx

Universal archery timing system
for practice & competitions

Read More

Archery timer DAT2010Lx is ideal for any archery club

to use it for treining and competitions, becouse it have all functions as is requested from WA and NFFA shooting rules.

Read More

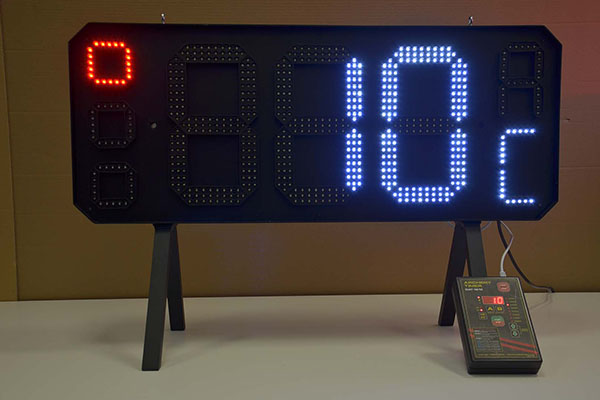

The All New Archery timer DAT2010Lx

This all new timing system is ideal for anyarcher whether you are looking for the perfect training timer or a reliable competition multi device. The DAT2010Lx is functional in all environments, robust and comes with a multitude of pre-programmed NFAA and World Archery timing settings. This brand new device has already been used by many archery associations and also for the Junior European WA championship.

The DAT-2010Lx has a built in sound system eliminating the need for external speakers. The sound system inbuilt to this device isPiezzo Sirens to meeting world archery regulation. The volume is adjustable allowing users to choose a suitable setting for a personal or competition environment.

A START-STOP and EMERGENCY button displays the time on the screen and generates five emergency sound signals with additional emergency display pattern. All audio sounds are compatible with WA and NFAA rules for indoor and outdoor shooting. Additionally, the DAT-2010Lx timer allows choosing 8 different shooting modes.

As the brightness of the screen is adjustable with 3 different intensity levels the DAT-2010Lx timer can be used in all conditions. The LED system has been designed with the archer in mind. Gone are the days of struggling to see how much precious time you have left! No matter how hard the rain, how thick the fog or how bright the sun you WILL be able to see the seconds tick down in any condition. Our specially developed LED modules were used to make the DAT-2010Lx timer completely watertight and reliable in all weather conditions.

Contact us!

Awesome Features

DAT-2010Lx

All modes unlimited timing setup

...

Alternate shooting possible when using 2 displays

Multi Displays (up to 100 units) can be linked and easily controlled through one remote control.

Adjustable brightness level

...

Adjustable volume

...

Emergency stop

...

Reshoot mode (1 arrow)

Specific single arrow time setting allowing for one arrow shoot offs or a reshoot.

Teams timing mode

Team match timing settings

Self-diagnostic mode

Total internal system check every time the device is turned on (max 10 seconds)

Archery timer DAT2010Lx
is ideal for any archery club.

Perfect for training, national or international competitions. Waterproof and reliable.
Easy to see and even easier to set up. What more could you ask for?

---
Use of our archery timer devices in European junior championship Klagentfurt 2015.



COMBINATIONS

Individual units can be linked together to form a network of programmable screens all of which can be controlled by a single device.

(All units come with a variety of linking cables and an easy step by step manual so there’s no need to worry)


Basic unit:

1x timer display + 1x remote control + 30m data cable

Optimum unit:

2 x timer display + 1 x controller + 2x 30 m of data cable

optimum unit

Additional display-only unit:

Each controller can operate more than 100 displays at the same time

additional display

DISPLAY SEQUENCES

- Archery Timer DAT2010Lx -

Start sequence

1 line of archers

Game sequence

1 line of archers

Shooting sequence - last 30 sec

1 line of archers

Start sequence

AB line of archers

Game sequence

AB line of archers

Shooting sequence - last 30 sec

AB line of archers

Start sequence

CD line of archers

Game sequence

CD line of archers

Shooting sequence - last 30 sec

CD line of archers

Detailed look

of the LED module

Detailed look

Of red, yellow and green LED lights

Back side

connection panel

Detailed look

Of the Hook

Detailed look

of the LED module

CONTROLER 2010lx

Archery timer in venue

Optimum unit offer includes a unique setup for alternate shooting which is briefly described below:

When operating two or more displays (available with the purchase of the Optimum unit), alternate timing can be used for the individual or team finals.

For the individual finals, each display is used for a different archer.

For example, display 1 is showing only the time for archer A. For the team finals, both displays also operate independently, however the countdown switches between the two screens. As one operates, the other one is paused and the opposite.

...

The DAT-2010Lx was developed entirely by TEBRA d.o.o. and made from the best components for long-term sustainable usage.

The housing unit is made from powder coated aluminium while the LED segments and remote control are made from ABS plastics making all components completely waterproof. The remote control has additionally protection from the industrial gradegraphic overlay.

The DAt-2010Lx is made from top quality materials and components.

The DAT-2010Lx timer is already being widely used in Slovenia, Italy, Austria, Lithuania, Switzerland, Germany, Estonia, Australia and many others.

ALTERNATE SHOOTING - UNIQUE SETUP

- Archery Timer DAT2010Lx -

Archery Timer - ALTERNATE SHOOTING

Archery Timer - ALTERNATE SHOOTING

Archery Timer - ALTERNATE SHOOTING

Archery Timer - ALTERNATE SHOOTING

Archery Timer - ALTERNATE SHOOTING

Archery Timer - ALTERNATE SHOOTING

Archery Timer - ALTERNATE SHOOTING

TECHNICAL INFORMATION

  • DISPLAY: 95 x 40 x 10 cm (37.4" x 15.75" x 4.73") and weighs approximately 9 kg
  • DISPLAY STAND (separate and removable) lifts the display for approximately 20 cm (8.00")
  • REMOTE CONTROL: 14 x 22 x 4 cm (5.50" x 8.70" x 1.60") and weighs approximately 0,15 kg
  • VOLTAGE: 110-240VDC / 50Hz or car battery power: 12VDC
  • Max countdown time to set: 999 second
  • Emergency stop button

Some other special features:


The DAT-2010Lx timer allows the user to set a max time of 999 seconds the countdown timing up to 999 seconds which fits all desires and needs an archer can have. A START-STOP and EMERGENCY button displays the time on the screen and generates five emergency sound signals with additional emergency display pattern. All audio sounds are compatible with WA and NFAA rules for indoor and outdoor shooting. Additionally, the DAT-2010Lx timer allows choosing 8 different shooting modes.
